效果

先看效果图，左边是 两张测试数据，右边是 预测结果

标注数据集下载地址已更新

实现

1. 训练模型

bathcsize 为 700 轮次 50

#!/usr/bin/env python
# coding: utf-8

# # 训练模型
#
# ## 引入第三方包

# In[1]:


from PIL import Image
from keras import backend as K
from keras.utils.vis_utils import plot_model
from keras.models import *
from keras.layers import *

import glob
import pickle

import numpy as np
import tensorflow.gfile as gfile
import matplotlib.pyplot as plt

# ## 定义超参数和字符集

# In[2]:


NUMBER = ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9']


CAPTCHA_CHARSET = NUMBER  # 验证码字符集
CAPTCHA_LEN = 5  # 验证码长度
CAPTCHA_HEIGHT = 50  # 验证码高度
CAPTCHA_WIDTH = 200  # 验证码宽度

TRAIN_DATA_DIR = './train-data/'  # 验证码数据集目录
TEST_DATA_DIR = './test-data/'

BATCH_SIZE = 700
EPOCHS = 50
OPT = 'adam'  # adam
LOSS = 'binary_crossentropy'

MODEL_DIR = './model/train_demo/'
MODEL_FORMAT = '.h5'
HISTORY_DIR = './history/train_demo/'
HISTORY_FORMAT = '.history'

filename_str = "{}captcha_{}_{}_bs_{}_epochs_{}{}"

# 模型网络结构文件
MODEL_VIS_FILE = 'captcha_classfication' + '.png'
# 模型文件
MODEL_FILE = filename_str.format(MODEL_DIR, OPT, LOSS, str(BATCH_SIZE), str(EPOCHS), MODEL_FORMAT)
# 训练记录文件
HISTORY_FILE = filename_str.format(HISTORY_DIR, OPT, LOSS, str(BATCH_SIZE), str(EPOCHS), HISTORY_FORMAT)


# ## 将 RGB 验证码图像转为灰度图

# In[3]:


def rgb2gray(img):
    # Y' = 0.299 R + 0.587 G + 0.114 B
    # https://en.wikipedia.org/wiki/Grayscale#Converting_color_to_grayscale
    return np.dot(img[..., :3], [0.299, 0.587, 0.114])


# ## 对验证码中每个字符进行 one-hot 编码

# In[4]:


def text2vec(text, length=CAPTCHA_LEN, charset=CAPTCHA_CHARSET):
    text_len = len(text)
    # 验证码长度校验
    if text_len != length:
        raise ValueError('Error: length of captcha should be {}, but got {}'.format(length, text_len))

    # 生成一个形如（CAPTCHA_LEN*CAPTHA_CHARSET,) 的一维向量
    # 例如，4个纯数字的验证码生成形如(4*10,)的一维向量
    vec = np.zeros(length * len(charset))
    for i in range(length):
        # One-hot 编码验证码中的每个数字
        # 每个字符的热码 = 索引 + 偏移量
        vec[charset.index(text[i]) + i * len(charset)] = 1
    return vec


# ## 将验证码向量解码为对应字符

# In[5]:


def vec2text(vector):
    if not isinstance(vector, np.ndarray):
        vector = np.asarray(vector)
    vector = np.reshape(vector, [CAPTCHA_LEN, -1])
    text = ''
    for item in vector:
        text += CAPTCHA_CHARSET[np.argmax(item)]
    return text


# ## 适配 Keras 图像数据格式

# In[6]:


def fit_keras_channels(batch, rows=CAPTCHA_HEIGHT, cols=CAPTCHA_WIDTH):
    if K.image_data_format() == 'channels_first':
        batch = batch.reshape(batch.shape[0], 1, rows, cols)
        input_shape = (1, rows, cols)
    else:
        batch = batch.reshape(batch.shape[0], rows, cols, 1)
        input_shape = (rows, cols, 1)

    return batch, input_shape


# ## 读取训练集

# In[7]:


X_train = []
Y_train = []
for filename in glob.glob(TRAIN_DATA_DIR + '*.jpg'):
    X_train.append(np.array(Image.open(filename)))
    Y_train.append(filename.lstrip(TRAIN_DATA_DIR).rstrip('.jpg'))

# ## 处理训练集图像

# In[8]:


# list -> rgb(numpy)
X_train = np.array(X_train, dtype=np.float32)
# rgb -> gray
X_train = rgb2gray(X_train)
# normalize
X_train = X_train / 255
# Fit keras channels
X_train, input_shape = fit_keras_channels(X_train)

print(X_train.shape, type(X_train))
print(input_shape)

# ## 处理训练集标签

# In[9]:


Y_train = list(Y_train)

for i in range(len(Y_train)):
    Y_train[i] = text2vec(Y_train[i])

Y_train = np.asarray(Y_train)

print(Y_train.shape, type(Y_train))

# ## 读取测试集，处理对应图像和标签

# In[10]:


X_test = []
Y_test = []
for filename in glob.glob(TEST_DATA_DIR + '*.jpg'):
    X_test.append(np.array(Image.open(filename)))
    Y_test.append(filename.lstrip(TEST_DATA_DIR).rstrip('.jpg'))

# list -> rgb -> gray -> normalization -> fit keras
X_test = np.array(X_test, dtype=np.float32)
X_test = rgb2gray(X_test)
X_test = X_test / 255
X_test, _ = fit_keras_channels(X_test)

Y_test = list(Y_test)
for i in range(len(Y_test)):
    Y_test[i] = text2vec(Y_test[i])

Y_test = np.asarray(Y_test)

print(X_test.shape, type(X_test))
print(Y_test.shape, type(Y_test))

# ## 创建验证码识别模型

# In[11]:


# 输入层
inputs = Input(shape=input_shape, name="inputs")

# 第1层卷积
conv1 = Conv2D(32, (3, 3), name="conv1")(inputs)
relu1 = Activation('relu', name="relu1")(conv1)

# 第2层卷积
conv2 = Conv2D(32, (3, 3), name="conv2")(relu1)
relu2 = Activation('relu', name="relu2")(conv2)
pool2 = MaxPooling2D(pool_size=(2, 2), padding='same', name="pool2")(relu2)

# 第3层卷积
conv3 = Conv2D(64, (3, 3), name="conv3")(pool2)
relu3 = Activation('relu', name="relu3")(conv3)
pool3 = MaxPooling2D(pool_size=(2, 2), padding='same', name="pool3")(relu3)

# 将 Pooled feature map 摊平后输入全连接网络
x = Flatten()(pool3)

# Dropout
x = Dropout(0.25)(x)

# 4个全连接层分别做10分类，分别对应4个字符。
x = [Dense(10, activation='softmax', name='fc%d' % (i + 1))(x) for i in range(5)]

# 4个字符向量拼接在一起，与标签向量形式一致，作为模型输出。
outs = Concatenate()(x)

# 定义模型的输入与输出
model = Model(inputs=inputs, outputs=outs)
model.compile(optimizer=OPT, loss=LOSS, metrics=['accuracy'])

# ## 查看模型摘要

# In[12]:


model.summary()

# ## 模型可视化

# In[13]:


plot_model(model, to_file=MODEL_VIS_FILE, show_shapes=True)

# ## 训练模型

# In[14]:


history = model.fit(X_train,
                    Y_train,
                    batch_size=BATCH_SIZE,
                    epochs=EPOCHS,
                    verbose=2,
                    validation_data=(X_test, Y_test))

# ## 预测样例

# In[47]:


print(vec2text(Y_test[9]))

# In[48]:


yy = model.predict(X_test[9].reshape(1, 50, 200, 1))

# In[49]:


print(vec2text(yy))

# ## 保存模型

# In[50]:


if not gfile.Exists(MODEL_DIR):
    gfile.MakeDirs(MODEL_DIR)

model.save(MODEL_FILE)
print('Saved trained model at %s ' % MODEL_FILE)

# ## 保存训练过程记录

# In[51]:

print(history.history['acc'])

# In[52]:


history.history.keys()

# In[53]:


if gfile.Exists(HISTORY_DIR) == False:
    gfile.MakeDirs(HISTORY_DIR)

# with open(HISTORY_FILE, 'wb') as f:
#     pickle.dump(history.history, f)


# In[54]:


# print(HISTORY_FILE)


# In[ ]:

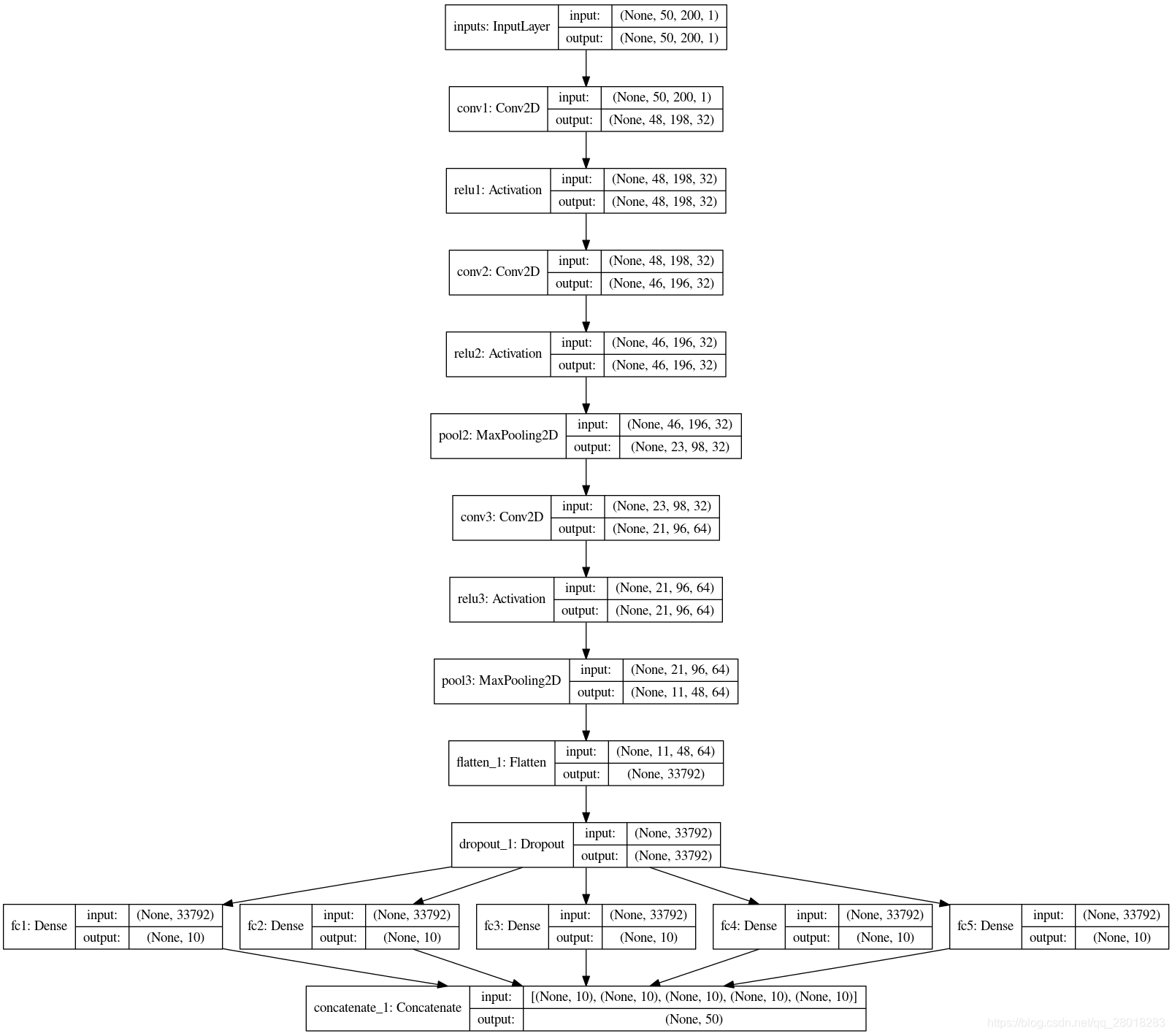

2 模型结构设计

3. 建立预测服务

import base64

import numpy as np
import tensorflow as tf

from io import BytesIO
from flask import Flask, request, jsonify
from keras.models import load_model
from PIL import Image

NUMBER = ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9']
LOWERCASE = ['a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't', 'u',
            'v', 'w', 'x', 'y', 'z']
UPPERCASE = ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U',
           'V', 'W', 'X', 'Y', 'Z']

CAPTCHA_CHARSET = NUMBER   # 验证码字符集
CAPTCHA_LEN = 5            # 验证码长度
CAPTCHA_HEIGHT = 50        # 验证码高度
CAPTCHA_WIDTH = 200        # 验证码宽度

# 10 个 Epochs 训练的模型 rmsprop  adam
MODEL_FILE = './model/train_demo/captcha_adam_binary_crossentropy_bs_700_epochs_50.h5'

def vec2text(vector):
    if not isinstance(vector, np.ndarray):
        vector = np.asarray(vector)
    vector = np.reshape(vector, [CAPTCHA_LEN, -1])
    text = ''
    for item in vector:
        text += CAPTCHA_CHARSET[np.argmax(item)]
    return text

def rgb2gray(img):
    # Y' = 0.299 R + 0.587 G + 0.114 B
    # https://en.wikipedia.org/wiki/Grayscale#Converting_color_to_grayscale
    return np.dot(img[...,:3], [0.299, 0.587, 0.114])

app = Flask(__name__) # 创建 Flask 实例

# 测试 URL
@app.route('/ping', methods=['GET', 'POST'])
def hello_world():
    return 'pong'

# 验证码识别 URL
@app.route('/predict', methods=['POST'])
def predict():
    response = {'success': False, 'prediction': '', 'debug': 'error'}
    received_image= False
    if request.method == 'POST':
        if request.files.get('image'): # 图像文件
            image = request.files['image'].read()
            # print("image is ")
            # print(image)
            received_image = True
            response['debug'] = 'get image'
        elif request.get_json(): # base64 编码的图像文件
            encoded_image = request.get_json()['image']
            image = base64.b64decode(encoded_image)
            received_image = True
            response['debug'] = 'get json'
        if received_image:
            image = np.array(Image.open(BytesIO(image)))
            image = rgb2gray(image).reshape(1, 50, 200, 1).astype('float32') / 255
            with graph.as_default():
                pred = model.predict(image)
            response['prediction'] = response['prediction'] + vec2text(pred)
            response['success'] = True
            response['debug'] = 'predicted'
    else:
        response['debug'] = 'No Post'
    return jsonify(response)

model = load_model(MODEL_FILE) # 加载模型
graph = tf.get_default_graph() # 获取 TensorFlow 默认数据流图

# 启动命令
# export FLASK_ENV=development && flask run --host=0.0.0.0
# curl 127.0.0.1:5000/ping
# curl -X POST -F image=@/root/Workspace/leon/test-data/56497.jpg 'http://localhost:5000/predict'

4 数据集下载

train-data.zip
