关于模式识别学习，我自己认为就是边看代码边学习比较好，因为只看概念很容易造成误解，认为自己都懂了，其实还很浅显，要想深入理解，还是必须结合代码。
先推荐一篇很不错的博客吧，浏览量快100万了，讲的也很清楚
文中所需的数据我会放到资源中，以供大家学习。
这是我对这个程序的笔记，一家之言，姑且看之
def testDigits(kTup=('rbf', 10)):
dataArr,labelArr = loadImages(r'C:\Users\Administrator\Desktop\MLiA_SourceCode\Ch06\digits\trainingDigits')
b,alphas = smoP(dataArr, labelArr, 200, 0.0001, 10000,kTup)#加速版smo，训练时间短，正确率高
# b,alphas = smoSimple(dataArr, labelArr, 200, 0.0001, 20) #简化版smo，训练时间长，正确率不高
# b,alphas = smoPK(dataArr, labelArr, 200, 0.0001, 10000) #不用核函数的计算,与加速版的SMO算法区别仅在于不同的误差计算方法，即一个用了核函数，一个没用
datMat=mat(dataArr); labelMat = mat(labelArr).transpose() #dataArr,labelArr 402*1024 1*402
svInd=nonzero(alphas>0)[0]
# print(nonzero(alphas))
# print(type(svInd))
sVs=datMat[svInd] #支持向量
labelSV = labelMat[svInd];
print ("there are %d Support Vectors" % shape(sVs)[0])
m,n = shape(datMat)#402*1024
errorCount = 0
for i in range(m):
kernelEval = kernelTrans(sVs,datMat[i,:],kTup)
predict=kernelEval.T * multiply(labelSV,alphas[svInd]) + b
if sign(predict)!=(labelArr[i]): #sign()的用法：大于0的返回1 # sign(2) = 1 小于0的返回-1 # sign(-3) = -1等于0的返回0 # sign(0) = 0
errorCount += 1
print ("the training error rate is: %f" % (float(errorCount)/m))
dataArr,labelArr = loadImages(r'C:\Users\Administrator\Desktop\MLiA_SourceCode\Ch06\digits\testDigits')
errorCount = 0
datMat=mat(dataArr); labelMat = mat(labelArr).transpose()
m,n = shape(datMat)
for i in range(m):
kernelEval = kernelTrans(sVs,datMat[i,:],kTup)
predict=kernelEval.T * multiply(labelSV,alphas[svInd]) + b
if sign(predict)!=sign(labelArr[i]):
errorCount += 1
print ("the test error rate is: %f" % (float(errorCount)/m))
先看这段代码吧！
定义函数名虽然叫做测试testDigits，但是里面包含了训练过程。
第一个函数
loadImages(self）self表示的是文件的路径，loadImages（self）也是自己定义的一个函数，便于读取文件。具体函数如下：
def loadImages(dirName):
from os import listdir
hwLabels = []
trainingFileList = listdir(dirName) #load the training set
m = len(trainingFileList)
trainingMat = zeros((m,1024))#m=402
# print(m)
for i in range(m):
fileNameStr = trainingFileList[i]
# print(fileNameStr)
fileStr = fileNameStr.split('.')[0] #take off .txt
classNumStr = int(fileStr.split('_')[0])
if classNumStr == 9:
hwLabels.append(-1)
else:
hwLabels.append(1)
trainingMat[i,:] = img2vector('%s/%s' % (dirName, fileNameStr))
# print(hwLabels)
return trainingMat, hwLabels # trainingMat 402*1024

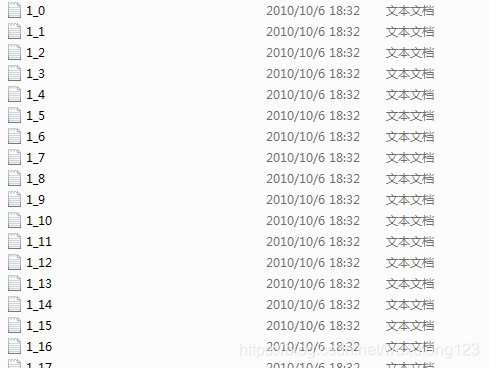

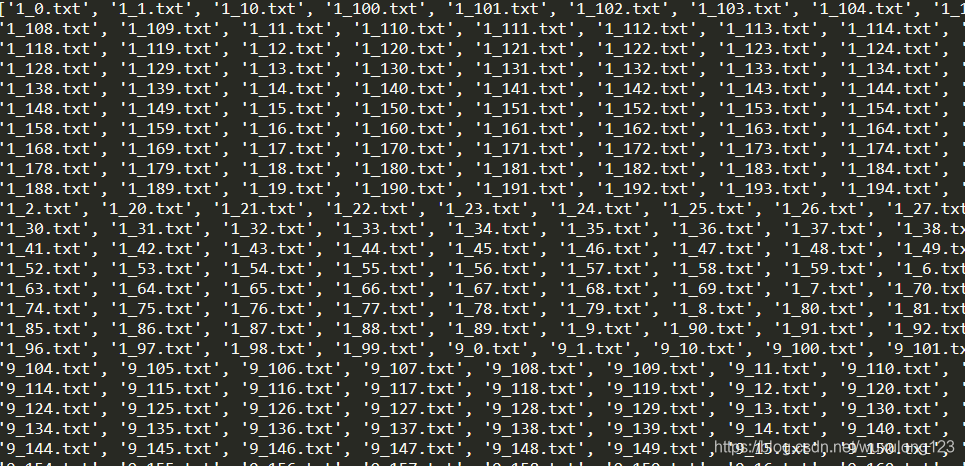

接下来先把这个代码块讲完，再讲第一个代码块。from os import listdir，就是引用库，读取文件的列表，trainingFileList = listdir(dirName)就是读取传过来的路径里面的文件名字列表。读取出来如下，文件夹里面也如下。看到了不，读取文件名字之后放进一个列表中，便于后边使用。
fileStr = fileNameStr.split(’.’)[0]，这个函数就是以.为分割，分成两个元素,[“1_0”,“txt”],然后去第一个元素，就是1_0，这个函数呢？classNumStr = int(fileStr.split(’_’)[0])，不用我说你也应该知道了，就是取1，并化为整型。
if classNumStr == 9:
hwLabels.append(-1)
else:
hwLabels.append(1)
上面这个呢？就是把9标记为-1,1标记为1.这里不论把谁标记为1和-1都可以，后边会解释。但是标记也不必都是1和-1，其他也可以，但是为了方便计算，这样标记最好，前人的经验，不需要知道为什么都行，就像我们知道1+1=2，但是谁能知道为什么呢？恐怕只有顶尖的数学家才能解释一二。简而言之，记住就好。
trainingMat[i,:] = img2vector(’%s/%s’ % (dirName, fileNameStr))
上面这个呢？就是把1_0.txt里面的数据（原来是3232）转化为11024，为什么呢？因为好计算啊，一行就完了，不用再计算时一行一行的去循取出来计算，就是便于存取。这里涉及自己定义的一个函数 img2vector（self）这里的self就是C:\Users\Administrator\Desktop\MLiA_SourceCode\Ch06\digits\trainingDigits\1_0.txt，下面介绍img2vector（self）函数：
def img2vector(filename):
returnVect = zeros((1,1024))
fr = open(filename)
for i in range(32):
lineStr = fr.readline()
for j in range(32):
returnVect[0,32*i+j] = int(lineStr[j])
return returnVect
returnVect = zeros((1,1024))这是矩阵定义就不说了吧？
fr=open（filename）就是打开刚才的路径，文件，读取里面的数据，不知道里面啥数据的可以去看看文章开头的资源。
for i in range(32):
lineStr = fr.readline()
for j in range(32):
returnVect[0,32i+j] = int(lineStr[j])
上面的程序就是把文件中（3232）的矩阵一行一行的读取出来然后整合成1*1024形式。
接下来，继续讲解第一个代码块
b,alphas = smoP(dataArr, labelArr, 200, 0.0001, 10000,kTup)这里就要涉及SVM了，b和alpha都是SVM的重要参数，也是待学习参数。smoP就是SMO算法，smoP函数如下：
它的主要目的就是根据条件，学习修正参数。
def smoP(dataMatIn, classLabels, C, toler, maxIter,ktup): #full Platt SMO
oS = optStruct(mat(dataMatIn),mat(classLabels).transpose(),C,toler, ktup)
# print(oS.K.shape)402*402
# for i in range(402): K的对角线元素全为1
# print(oS.K.A[i][i])
iter = 0
entireSet = True; alphaPairsChanged = 0
while (iter < maxIter) and( (alphaPairsChanged > 0) or(entireSet) ):#一直执行这个循环，直到循环10000次或者alpha不再改变
alphaPairsChanged = 0
if entireSet: #go over all
# print(3213213333333333333333333333333333)
for i in range(oS.m): #oS.m=402
alphaPairsChanged += innerL(i,oS,iter)
print ("fullSet, iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
iter += 1
else:#go over non-bound (railed) alphas
nonBoundIs = nonzero((oS.alphas.A > 0) * (oS.alphas.A < C))[0]#找到alpha中同时满足大于0小于c的数，[0]表示返回索引值
for i in nonBoundIs:
alphaPairsChanged += innerL(i,oS,iter)
print ("non-bound, iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
iter += 1
#下面这句自己加的，可以在训练达到最好时及时停止。因为上面的程序在偶数时不会停止
if alphaPairsChanged==0:
maxIter=iter
if entireSet:
entireSet = False #toggle entire set loop
elif (alphaPairsChanged == 0):
entireSet = True
print ("iteration number: %d" % iter)
return oS.b,oS.alphas
smoP的算法中第二行
oS = optStruct(mat(dataMatIn),mat(classLabels).transpose(),C,toler, ktup)
定义SVM的一些参数，C，惩罚因子，toler，误差，ktup，选择核函数。
optStruct（）函数入下：大部分大家应该都懂，就最后一个，就是核函数
class optStruct:
def __init__(self,dataMatIn, classLabels, C, toler, kTup): # Initialize the structure with the parameters
self.X = dataMatIn
self.labelMat = classLabels
self.C = C# 200
self.tol = toler #toler为公差0.0001
self.m = shape(dataMatIn)[0]#402
self.alphas = mat(zeros((self.m,1)))
self.b = 0
self.eCache = mat(zeros((self.m,2))) #first column is valid flag
self.K = mat(zeros((self.m,self.m)))
for i in range(self.m):
self.K[:,i] = kernelTrans(self.X, self.X[i,:], kTup)
kernelTrans（）是自己定义的一个核函数计算公式，核函数作用很大，可以将不可分的低微数据向高维数据转化，变成可分的数据。
def kernelTrans(X, A, kTup): #calc the kernel or transform data to a higher dimensional space
m,n = shape(X) #402*1024
K = mat(zeros((m,1)))
# print(kTup)
if kTup[0]=='lin':
K = X * A.T #linear kernel X=402*1024 .* A.T=1024*1 =402*1
elif kTup[0]=='rbf':
for j in range(m):
deltaRow = X[j,:] - A
# print( type(deltaRow),dot(deltaRow,deltaRow.T),(deltaRow*deltaRow.T))
K[j] = dot(deltaRow,deltaRow.T) #deltaRow*deltaRow.T 因为用了mat，所以这个和dot一样 1*1
K = exp(K/(-1*kTup[1]**2)) #divide in NumPy is element-wise not matrix like Matlab 算出来其实K属于0-1，所以后边的有一步判断没必要
else:
raise NameError('Houston We Have a Problem -- \
That Kernel is not recognized')
return K
因为我们选择的是rbf也就是径向基函数，def kernelTrans(X, A, kTup):中的A就是class optStruct:中传过去的 self.X[i,:]就是数据的第i行，
for j in range(m):
deltaRow = X[j,:] - A
# print( type(deltaRow),dot(deltaRow,deltaRow.T),(deltaRowdeltaRow.T))
K[j] = dot(deltaRow,deltaRow.T) #deltaRowdeltaRow.T 因为用了mat，所以这个和dot一样 11
K = exp(K/(-1kTup[1]**2))
上面程序就是用数据的第j行减去第i行作为核矩阵的第i行第j列的元素。注意，这里的第i行对于一次循环来说是固定的，因为每次循环只传递进去某一行，分别被各行相减。这里为什么相减呢？有些人就要问了？
因为我们选用的是高斯核函数，又叫径向基函数。它的形式就是上面的那样。好了，下面我们重新讲smoP代码了
iter = 0
entireSet = True; alphaPairsChanged = 0
while (iter < maxIter) and( (alphaPairsChanged > 0) or(entireSet) ):
什么时候进行循环学习呢？
（1）：当迭代次数不超过最大迭代次数时。
（2）：当没有必要迭代时（没有必要时就是alpha不在被修改了，也就是已经最优了，即alphaPairsChanged=0时）
那为什么while后边会有三个参数呢？（entireSet），因为没有它这个循环就不会开始想想是不是？iter < maxIter成立，但是alphaPairsChanged > 0不成立啊？所以entireSet出现了。
把代码再粘贴一下吧，太远了不好看
def smoP(dataMatIn, classLabels, C, toler, maxIter,ktup): #full Platt SMO
oS = optStruct(mat(dataMatIn),mat(classLabels).transpose(),C,toler, ktup)
# print(oS.K.shape)402*402
# for i in range(402): K的对角线元素全为1
# print(oS.K.A[i][i])
iter = 0
entireSet = True; alphaPairsChanged = 0
while (iter < maxIter) and( (alphaPairsChanged > 0) or(entireSet) ):#一直执行这个循环，直到循环10000次或者alpha不再改变
alphaPairsChanged = 0
if entireSet: #go over all
for i in range(oS.m): #oS.m=402
alphaPairsChanged += innerL(i,oS,iter)
print ("fullSet, iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
iter += 1
else:#go over non-bound (railed) alphas
nonBoundIs = nonzero((oS.alphas.A > 0) * (oS.alphas.A < C))[0]#找到alpha中同时满足大于0小于c的数，[0]表示返回索引值
for i in nonBoundIs:
alphaPairsChanged += innerL(i,oS,iter)
print ("non-bound, iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
iter += 1
#下面这句自己加的，可以在训练达到最好时及时停止。因为上面的程序在偶数时不会停止
if alphaPairsChanged==0:
maxIter=iter
if entireSet:
entireSet = False #toggle entire set loop
elif (alphaPairsChanged == 0):
entireSet = True
print ("iteration number: %d" % iter)
return oS.b,oS.alphas
alphaPairsChanged = 0进入循环第一件事就是置0.因为我们就是要看他有没有被修改的，所以每次置0，看他有没有改变，没改变就结束循环了。刚才一直说alpha被修改，学习，但是怎么学习和修改呢？
innerL函数就是学习的过程：
def innerL(i, oS,iter):
Ei = calcEk(oS, i)
if (((oS.labelMat[i]*Ei < -oS.tol) and (oS.alphas[i] < oS.C)) or(oS.labelMat[i]*Ei >oS.tol) and (oS.alphas[i] > 0)):
j,Ej = selectJ(i, oS, Ei) #this has been changed from selectJrand
# print(Ej,j)
alphaIold = oS.alphas[i].copy(); alphaJold = oS.alphas[j].copy(); #list.copy复制了一个副本,对副本列表进行操作时,不会影响原列表,不用copy将会改变原列表
if (oS.labelMat[i] != oS.labelMat[j]):
L = max(0, oS.alphas[j] - oS.alphas[i])
H = min(oS.C, oS.C + oS.alphas[j] - oS.alphas[i])
else:
L = max(0, oS.alphas[j] + oS.alphas[i] - oS.C)
H = min(oS.C, oS.alphas[j] + oS.alphas[i])
if L==H: # smo算法原理 见刘建平讲解
print ("L==H");
return 0
eta = -2.0 * oS.K[i,j] + oS.K[i,i] + oS.K[j,j] #changed for kernel K对角线元素全为1
if eta <= 0:
print ("eta<=0");#这一步判断应该是没必要，因为K属于0-1，kii=1，所以二塔恒大于0，除非kij为1
return 0#return 0之后就不再执行下面的程序了
oS.alphas[j] += oS.labelMat[j]*(Ei - Ej)/eta
oS.alphas[j] = clipAlpha(oS.alphas[j],H,L)
updateEk(oS, j) #added this for the Ecache
if (abs(oS.alphas[j] - alphaJold) < 0.00001):
print ("j not moving enough");
return 0 #return 0之后就不再执行下面的程序了 # 如果j变化不大，说明j移动不够，就不用更新i了，跳过这次
oS.alphas[i] += oS.labelMat[j]*oS.labelMat[i]*(alphaJold - oS.alphas[j])#update i by the same amount as j
updateEk(oS, i) #added this for the Ecache #the update is in the oppostie direction
b1 = oS.b - Ei- oS.labelMat[i]*(oS.alphas[i]-alphaIold)*oS.K[i,i] - oS.labelMat[j]*(oS.alphas[j]-alphaJold)*oS.K[i,j]
b2 = oS.b - Ej- oS.labelMat[i]*(oS.alphas[i]-alphaIold)*oS.K[i,j]- oS.labelMat[j]*(oS.alphas[j]-alphaJold)*oS.K[j,j]
if (0 < oS.alphas[i]) and (oS.C > oS.alphas[i]):
oS.b = b1
elif (0 < oS.alphas[j]) and (oS.C > oS.alphas[j]):
oS.b = b2
else:
oS.b = (b1 + b2)/2.0
return 1
else:
return 0
大家都知道神经网络需要误差反向传播，用以网络的学习，那SVM也不例外，同样需要误差，才能学习，修改参数。
def calcEk(oS, k):
fXk = float(multiply(oS.alphas,oS.labelMat).T*oS.K[:,k] + oS.b)
# 402*1.T.*402*1=1*1
Ek = fXk - float(oS.labelMat[k])
return Ek
关于上面文字推论很多，详细看我资源里面有一本SVM的书，很详细
以下是完整代码
'''
Created on Nov 4, 2010
Chapter 5 source file for Machine Learing in Action
@author: Peter
'''
from numpy import *
# from time import sleep
def loadDataSet(fileName):
dataMat = []; labelMat = []
fr = open(fileName)
for line in fr.readlines():
lineArr = line.split('\t')
# print(type(line))
dataMat.append([float(lineArr[0]), float(lineArr[1])])
labelMat.append(float(lineArr[2]))
# print(type(dataMat))
return dataMat,labelMat
def selectJrand(i,m):
j=i #we want to select any J not equal to i
while (j==i):
j = int(random.uniform(0,m))#只要i和j相等，就一直循环生成随机数，知道不相等，返回j
# print(1)
return j
def clipAlpha(aj,H,L):
if aj > H:
aj = H
if L > aj:
aj = L
return aj
def smoSimple(dataMatIn, classLabels, C, toler, maxIter):#简化版ＳＭＯ算法，序列最小优化（Sequential Minimal Optimization， SMO） 算法
dataMatrix = mat(dataMatIn); labelMat = mat(classLabels).transpose()
b = 0; m,n = shape(dataMatrix)
alphas = mat(zeros((m,1)))
iter = 0
while (iter < maxIter):
alphaPairsChanged = 0
for i in range(m):
fXi = float(multiply(alphas,labelMat).T*(dataMatrix*dataMatrix[i,:].T)) + b #这里的计算方式不一样
# if labelMat[i]<0:
# # print(fXi,labelMat[i])
# if fXi>0:
# print(fXi)
#为什么标签为-1对应的fXi为负数，因为alpha>0，乘以负数还为负数。后边的数字均为正，故为负数。
Ei = fXi - float(labelMat[i])#if checks if an example violates KKT conditions
# if ((abs(fXi*labelMat[i]-1)>=toler) and (alphas[i] >= 0) and (alphas[i] <C)):#自己按照定义设置的
# if (((Ei*labelMat[i]>=toler)) or(Ei*labelMat[i]<=-toler) ): # ((labelMat[i]*Ei < -toler) and (alphas[i] >= 0) ) or ((labelMat[i]*Ei > toler) and (alphas[i] <=C) )):
if (((labelMat[i]*Ei < -toler) and (alphas[i] < C)) or(labelMat[i]*Ei >toler) and (alphas[i] > 0)):
j = selectJrand(i,m)
fXj = float(multiply(alphas,labelMat).T*(dataMatrix*dataMatrix[j,:].T)) + b
Ej = fXj - float(labelMat[j])
alphaIold = alphas[i].copy(); alphaJold = alphas[j].copy();
if (labelMat[i] != labelMat[j]):
L = max(0, alphas[j] - alphas[i])
H = min(C, C + alphas[j] - alphas[i])
else:
L = max(0, alphas[j] + alphas[i] - C)
H = min(C, alphas[j] + alphas[i])
if L==H:
print ("L==H")
continue
eta = 2.0 * dataMatrix[i,:]*dataMatrix[j,:].T - dataMatrix[i,:]*dataMatrix[i,:].T - dataMatrix[j,:]*dataMatrix[j,:].T
if eta >= 0:
print ("eta>=0");
continue
alphas[j] -= labelMat[j]*(Ei - Ej)/eta
alphas[j] = clipAlpha(alphas[j],H,L)
if (abs(alphas[j] - alphaJold) < 0.00001):
print ("j not moving enough");
continue
alphas[i] += labelMat[j]*labelMat[i]*(alphaJold - alphas[j])#update i by the same amount as j
#the update is in the oppostie direction
b1 = b - Ei- labelMat[i]*(alphas[i]-alphaIold)*dataMatrix[i,:]*dataMatrix[i,:].T - labelMat[j]*(alphas[j]-alphaJold)*dataMatrix[i,:]*dataMatrix[j,:].T
b2 = b - Ej- labelMat[i]*(alphas[i]-alphaIold)*dataMatrix[i,:]*dataMatrix[j,:].T - labelMat[j]*(alphas[j]-alphaJold)*dataMatrix[j,:]*dataMatrix[j,:].T
if (0 < alphas[i]) and (C > alphas[i]):
b = b1
elif (0 < alphas[j]) and (C > alphas[j]):
b = b2
else:
b = (b1 + b2)/2.0
alphaPairsChanged += 1
print ("iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
# if (alphaPairsChanged == 0): maxIter =iter
# else: iter += 1
iter+=1
print ("iteration number: %d" % iter)
return b,alphas
def kernelTrans(X, A, kTup): #calc the kernel or transform data to a higher dimensional space
m,n = shape(X) #402*1024
K = mat(zeros((m,1)))
# print(kTup)
if kTup[0]=='lin':
K = X * A.T #linear kernel X=402*1024 .* A.T=1024*1 =402*1
elif kTup[0]=='rbf':
for j in range(m):
deltaRow = X[j,:] - A
# print( type(deltaRow),dot(deltaRow,deltaRow.T),(deltaRow*deltaRow.T))
K[j] = dot(deltaRow,deltaRow.T) #deltaRow*deltaRow.T 因为用了mat，所以这个和dot一样 1*1
K = exp(K/(-1*kTup[1]**2)) #divide in NumPy is element-wise not matrix like Matlab 算出来其实K属于0-1，所以后边的有一步判断没必要
else:
raise NameError('Houston We Have a Problem -- \
That Kernel is not recognized')
return K
class optStruct:
def __init__(self,dataMatIn, classLabels, C, toler, kTup): # Initialize the structure with the parameters
self.X = dataMatIn
self.labelMat = classLabels
self.C = C# 200
self.tol = toler #toler为公差0.0001
self.m = shape(dataMatIn)[0]#402
self.alphas = mat(zeros((self.m,1)))
self.b = 0
self.eCache = mat(zeros((self.m,2))) #first column is valid flag
self.K = mat(zeros((self.m,self.m)))
for i in range(self.m):
self.K[:,i] = kernelTrans(self.X, self.X[i,:], kTup)
def calcEk(oS, k):
fXk = float(multiply(oS.alphas,oS.labelMat).T*oS.K[:,k] + oS.b)
# 402*1.T.*402*1=1*1
Ek = fXk - float(oS.labelMat[k])
return Ek
def selectJ(i, oS, Ei): #this is the second choice -heurstic, and calcs Ej
maxK = -1; maxDeltaE = 0; Ej = 0
oS.eCache[i] = [1,Ei] #set valid #choose the alpha that gives the maximum delta E
# print(oS.eCache[:,0])
# print(maxK)
validEcacheList = nonzero(oS.eCache[:,0])[0]
# print(oS.eCache[:,0]) #numpy.nonzero函数是numpy中用于得到数组array中非零元素的位置（数组索引）的函数
# print(len(validEcacheList))
if (len(validEcacheList)) > 1:
for k in validEcacheList: #loop through valid Ecache values and find the one that maximizes delta E
if k == i:
continue #don't calc for i, waste of time continue,跳出此次for循环
#其实不用这个就行，因为后边加了判断语句取最大值，自动就把小的值剔除，试了一下，把上面的注释之后，对结果没影响
Ek = calcEk(oS, k)
deltaE = abs(Ei - Ek)
if (deltaE > maxDeltaE):
maxK = k; maxDeltaE = deltaE; Ej = Ek
return maxK, Ej
else: #in this case (first time around) we don't have any valid eCache values
j = selectJrand(i, oS.m)
Ej = calcEk(oS, j)
return j, Ej
def updateEk(oS, k):#after any alpha has changed update the new value in the cache
Ek = calcEk(oS, k)
oS.eCache[k] = [1,Ek]
def innerL(i, oS,iter):
Ei = calcEk(oS, i)
# print(oS.labelMat[i])
# if ( (oS.alphas[i] < oS.C)) or ( (oS.alphas[i] > 0)):#下面条件可以简化成这样的格式。会对正确率造成百分之0.5的损失
#下面的这个约束条件是说误差太小或者变化不大时，就不更新
# if (((oS.labelMat[i]*Ei < -oS.tol) or ((oS.labelMat[i]*Ei > oS.tol))) and((oS.alphas[i] >= 0) and(oS.alphas[i] < oS.C) )):
if (((oS.labelMat[i]*Ei < -oS.tol) and (oS.alphas[i] < oS.C)) or(oS.labelMat[i]*Ei >oS.tol) and (oS.alphas[i] > 0)):
#上面的条件中，若包含alpha>=0则正确率会降低，因为alpha=0时位于边界
# if (((oS.labelMat[i]*Ei >= -oS.tol) or (oS.alphas[i] < oS.C)) ):用or就是为了让循环能够顺利进行
#即使不要or后边的限制条件也可以，因为下面会随机选择一个j，也会选到一个alpha并改变它，计算反而更快。
j,Ej = selectJ(i, oS, Ei) #this has been changed from selectJrand
# print(Ej,j)
alphaIold = oS.alphas[i].copy(); alphaJold = oS.alphas[j].copy(); #list.copy复制了一个副本,对副本列表进行操作时,不会影响原列表,不用copy将会改变原列表
if (oS.labelMat[i] != oS.labelMat[j]):
L = max(0, oS.alphas[j] - oS.alphas[i])
H = min(oS.C, oS.C + oS.alphas[j] - oS.alphas[i])
else:
L = max(0, oS.alphas[j] + oS.alphas[i] - oS.C)
H = min(oS.C, oS.alphas[j] + oS.alphas[i])
if L==H: # smo算法原理 见刘建平讲解
print ("L==H");
return 0
eta = -2.0 * oS.K[i,j] + oS.K[i,i] + oS.K[j,j] #changed for kernel K对角线元素全为1
if eta <= 0:
print ("eta<=0");#这一步判断应该是没必要，因为K属于0-1，kii=1，所以二塔恒大于0，除非kij为1
return 0#return 0之后就不再执行下面的程序了
oS.alphas[j] += oS.labelMat[j]*(Ei - Ej)/eta
oS.alphas[j] = clipAlpha(oS.alphas[j],H,L)
updateEk(oS, j) #added this for the Ecache
if (abs(oS.alphas[j] - alphaJold) < 0.00001):
print ("j not moving enough");
return 0 #return 0之后就不再执行下面的程序了 # 如果j变化不大，说明j移动不够，就不用更新i了，跳过这次
oS.alphas[i] += oS.labelMat[j]*oS.labelMat[i]*(alphaJold - oS.alphas[j])#update i by the same amount as j
updateEk(oS, i) #added this for the Ecache #the update is in the oppostie direction
b1 = oS.b - Ei- oS.labelMat[i]*(oS.alphas[i]-alphaIold)*oS.K[i,i] - oS.labelMat[j]*(oS.alphas[j]-alphaJold)*oS.K[i,j]
b2 = oS.b - Ej- oS.labelMat[i]*(oS.alphas[i]-alphaIold)*oS.K[i,j]- oS.labelMat[j]*(oS.alphas[j]-alphaJold)*oS.K[j,j]
if (0 < oS.alphas[i]) and (oS.C > oS.alphas[i]):
oS.b = b1
elif (0 < oS.alphas[j]) and (oS.C > oS.alphas[j]):
oS.b = b2
else:
oS.b = (b1 + b2)/2.0
return 1
else:
return 0
def smoP(dataMatIn, classLabels, C, toler, maxIter,ktup): #full Platt SMO
oS = optStruct(mat(dataMatIn),mat(classLabels).transpose(),C,toler, ktup)
# print(oS.K.shape)402*402
# for i in range(402): K的对角线元素全为1
# print(oS.K.A[i][i])
iter = 0
entireSet = True; alphaPairsChanged = 0
while (iter < maxIter) and( (alphaPairsChanged > 0) or(entireSet) ):#一直执行这个循环，直到循环10000次或者alpha不再改变
alphaPairsChanged = 0
if entireSet: #go over all
# print(3213213333333333333333333333333333)
for i in range(oS.m): #oS.m=402
alphaPairsChanged += innerL(i,oS,iter)
print ("fullSet, iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
iter += 1
else:#go over non-bound (railed) alphas
nonBoundIs = nonzero((oS.alphas.A > 0) * (oS.alphas.A < C))[0]#找到alpha中同时满足大于0小于c的数，[0]表示返回索引值
for i in nonBoundIs:
alphaPairsChanged += innerL(i,oS,iter)
print ("non-bound, iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
iter += 1
#下面这句自己加的，可以在训练达到最好时及时停止。因为上面的程序在偶数时不会停止
if alphaPairsChanged==0:
maxIter=iter
if entireSet:
entireSet = False #toggle entire set loop
elif (alphaPairsChanged == 0):
entireSet = True
print ("iteration number: %d" % iter)
return oS.b,oS.alphas
def calcWs(alphas,dataArr,classLabels):
X = mat(dataArr); labelMat = mat(classLabels).transpose()
m,n = shape(X)
w = zeros((n,1))
for i in range(m):
w += multiply(alphas[i]*labelMat[i],X[i,:].T)
return w
def testRbf(k1=1.3):
dataArr,labelArr = loadDataSet('testSetRBF.txt')
b,alphas = smoP(dataArr, labelArr, 200, 0.0001, 10000, ('rbf', k1)) #C=200 important
datMat=mat(dataArr); labelMat = mat(labelArr).transpose()
svInd=nonzero(alphas.A>0)[0]
sVs=datMat[svInd] #get matrix of only support vectors
labelSV = labelMat[svInd];
print ("there are %d Support Vectors" % shape(sVs)[0])
m,n = shape(datMat)
errorCount = 0
for i in range(m):
kernelEval = kernelTrans(sVs,datMat[i,:],('rbf', k1))
predict=kernelEval.T * multiply(labelSV,alphas[svInd]) + b
if sign(predict)!=sign(labelArr[i]): errorCount += 1
print ("the training error rate is: %f" % (float(errorCount)/m))
dataArr,labelArr = loadDataSet('testSetRBF2.txt')
errorCount = 0
datMat=mat(dataArr); labelMat = mat(labelArr).transpose()
m,n = shape(datMat)
for i in range(m):
kernelEval = kernelTrans(sVs,datMat[i,:],('rbf', k1))
predict=kernelEval.T * multiply(labelSV,alphas[svInd]) + b
if sign(predict)!=sign(labelArr[i]): errorCount += 1
print ("the test error rate is: %f" % (float(errorCount)/m))
def img2vector(filename):
returnVect = zeros((1,1024))
fr = open(filename)
for i in range(32):
lineStr = fr.readline()
for j in range(32):
returnVect[0,32*i+j] = int(lineStr[j])
return returnVect
def loadImages(dirName):
from os import listdir
hwLabels = []
trainingFileList = listdir(dirName)
print(trainingFileList) #load the training set
m = len(trainingFileList)
trainingMat = zeros((m,1024))#m=402
# print(m)
for i in range(m):
fileNameStr = trainingFileList[i]
# print(fileNameStr)
fileStr = fileNameStr.split('.')[0] #take off .txt
classNumStr = int(fileStr.split('_')[0])
if classNumStr == 9:
hwLabels.append(-1)
else:
hwLabels.append(1)
trainingMat[i,:] = img2vector('%s/%s' % (dirName, fileNameStr))
# print(hwLabels)
return trainingMat, hwLabels # trainingMat 402*1024
def testDigits(kTup=('rbf', 10)):
dataArr,labelArr = loadImages(r'C:\Users\Administrator\Desktop\MLiA_SourceCode\Ch06\digits\trainingDigits')
b,alphas = smoP(dataArr, labelArr, 200, 0.0001, 10000,kTup)#加速版smo，训练时间短，正确率高
# b,alphas = smoSimple(dataArr, labelArr, 200, 0.0001, 20) #简化版smo，训练时间长，正确率不高
# b,alphas = smoPK(dataArr, labelArr, 200, 0.0001, 10000) #不用核函数的计算,与加速版的SMO算法区别仅在于不同的误差计算方法，即一个用了核函数，一个没用
datMat=mat(dataArr); labelMat = mat(labelArr).transpose() #dataArr,labelArr 402*1024 1*402
svInd=nonzero(alphas>0)[0]
# print(nonzero(alphas))
# print(type(svInd))
sVs=datMat[svInd] #支持向量
labelSV = labelMat[svInd];
print ("there are %d Support Vectors" % shape(sVs)[0])
m,n = shape(datMat)#402*1024
errorCount = 0
for i in range(m):
kernelEval = kernelTrans(sVs,datMat[i,:],kTup)
predict=kernelEval.T * multiply(labelSV,alphas[svInd]) + b
if sign(predict)!=(labelArr[i]): #sign()的用法：大于0的返回1 # sign(2) = 1 小于0的返回-1 # sign(-3) = -1等于0的返回0 # sign(0) = 0
errorCount += 1
print ("the training error rate is: %f" % (float(errorCount)/m))
dataArr,labelArr = loadImages(r'C:\Users\Administrator\Desktop\MLiA_SourceCode\Ch06\digits\testDigits')
errorCount = 0
datMat=mat(dataArr); labelMat = mat(labelArr).transpose()
m,n = shape(datMat)
for i in range(m):
kernelEval = kernelTrans(sVs,datMat[i,:],kTup)
predict=kernelEval.T * multiply(labelSV,alphas[svInd]) + b
if sign(predict)!=sign(labelArr[i]):
errorCount += 1
print ("the test error rate is: %f" % (float(errorCount)/m))
'''#######********************************
Non-Kernel VErsions below 以下是不用核函数
'''#######********************************
class optStructK:
def __init__(self,dataMatIn, classLabels, C, toler): # Initialize the structure with the parameters
self.X = dataMatIn
self.labelMat = classLabels
self.C = C
self.tol = toler
self.m = shape(dataMatIn)[0]
self.alphas = mat(zeros((self.m,1)))
self.b = 0
self.eCache = mat(zeros((self.m,2))) #first column is valid flag
def calcEkK(oS, k):
fXk = float(multiply(oS.alphas,oS.labelMat).T*(oS.X*oS.X[k,:].T)) + oS.b
Ek = fXk - float(oS.labelMat[k])
return Ek
def selectJK(i, oS, Ei): #this is the second choice -heurstic, and calcs Ej
maxK = -1; maxDeltaE = 0; Ej = 0
oS.eCache[i] = [1,Ei] #set valid #choose the alpha that gives the maximum delta E
validEcacheList = nonzero(oS.eCache[:,0])[0]
if (len(validEcacheList)) > 1:
for k in validEcacheList: #loop through valid Ecache values and find the one that maximizes delta E
if k == i: continue #don't calc for i, waste of time
Ek = calcEkK(oS, k)
deltaE = abs(Ei - Ek)
if (deltaE > maxDeltaE):
maxK = k; maxDeltaE = deltaE; Ej = Ek
return maxK, Ej
else: #in this case (first time around) we don't have any valid eCache values
j = selectJrand(i, oS.m)
Ej = calcEkK(oS, j)
return j, Ej
def updateEkK(oS, k):#after any alpha has changed update the new value in the cache
Ek = calcEkK(oS, k)
oS.eCache[k] = [1,Ek]
def innerLK(i, oS):
Ei = calcEkK(oS, i)
if ((oS.labelMat[i]*Ei < -oS.tol) and (oS.alphas[i] < oS.C)) or ((oS.labelMat[i]*Ei > oS.tol) and (oS.alphas[i] > 0)):
j,Ej = selectJK(i, oS, Ei) #this has been changed from selectJrand
alphaIold = oS.alphas[i].copy(); alphaJold = oS.alphas[j].copy();
if (oS.labelMat[i] != oS.labelMat[j]):
L = max(0, oS.alphas[j] - oS.alphas[i])
H = min(oS.C, oS.C + oS.alphas[j] - oS.alphas[i])
else:
L = max(0, oS.alphas[j] + oS.alphas[i] - oS.C)
H = min(oS.C, oS.alphas[j] + oS.alphas[i])
if L==H:
print ("L==H");
return 0
eta = -2.0 * oS.X[i,:]*oS.X[j,:].T + oS.X[i,:]*oS.X[i,:].T + oS.X[j,:]*oS.X[j,:].T
if -eta >= 0:
print ("-eta>=0");
return 0
oS.alphas[j] += oS.labelMat[j]*(Ei - Ej)/eta
oS.alphas[j] = clipAlpha(oS.alphas[j],H,L)
updateEkK(oS, j) #added this for the Ecache
if (abs(oS.alphas[j] - alphaJold) < 0.00001):
print ("j not moving enough");
return 0
oS.alphas[i] += oS.labelMat[j]*oS.labelMat[i]*(alphaJold - oS.alphas[j])#update i by the same amount as j
updateEkK(oS, i) #added this for the Ecache #the update is in the oppostie direction
b1 = oS.b - Ei- oS.labelMat[i]*(oS.alphas[i]-alphaIold)*oS.X[i,:]*oS.X[i,:].T - oS.labelMat[j]*(oS.alphas[j]-alphaJold)*oS.X[i,:]*oS.X[j,:].T
b2 = oS.b - Ej- oS.labelMat[i]*(oS.alphas[i]-alphaIold)*oS.X[i,:]*oS.X[j,:].T - oS.labelMat[j]*(oS.alphas[j]-alphaJold)*oS.X[j,:]*oS.X[j,:].T
if (0 < oS.alphas[i]) and (oS.C > oS.alphas[i]):
oS.b = b1
elif (0 < oS.alphas[j]) and (oS.C > oS.alphas[j]):
oS.b = b2
else:
oS.b = (b1 + b2)/2.0
return 1
else: return 0
def smoPK(dataMatIn, classLabels, C, toler, maxIter): #full Platt SMO
oS = optStructK(mat(dataMatIn),mat(classLabels).transpose(),C,toler)
iter = 0
entireSet = True; alphaPairsChanged = 0
while (iter < maxIter) and ((alphaPairsChanged > 0) or (entireSet)):
alphaPairsChanged = 0
if entireSet: #go over all
for i in range(oS.m):
alphaPairsChanged += innerLK(i,oS)
print ("fullSet, iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
iter += 1
else:#go over non-bound (railed) alphas
nonBoundIs = nonzero((oS.alphas.A > 0) * (oS.alphas.A < C))[0]
for i in nonBoundIs:
alphaPairsChanged += innerLK(i,oS)
print ("non-bound, iter: %d i:%d, pairs changed %d" % (iter,i,alphaPairsChanged))
iter += 1
if alphaPairsChanged==0:
maxIter=iter
if entireSet:
entireSet = False #toggle entire set loop
elif (alphaPairsChanged == 0):
entireSet = True
print ("iteration number: %d" % iter)
return oS.b,oS.alphas
# testRbf()
testDigits()
CSDN联合极客时间，共同打造面向开发者的精品内容学习社区，助力成长！
更多推荐
3
0- 0
已为社区贡献1条内容
所有评论(0)
