树莓派PYQT5显示超声波HC-RS04传感器数据

1、HC-RS04底层驱动python版#!/usr/bin/pythonimport RPi.GPIO as GPIOimport timetrig=20echo=21def init_hcsr():GPIO.setmode(GPIO.BCM)#以BCM编码格式GPIO.setup(echo, GPIO.IN)#GPIO.setup(trig, GPIO.OUT)GPIO.setup(trig,

☆程序小黑★

568人浏览 · 2021-09-07 06:01:05

☆程序小黑★ · 2021-09-07 06:01:05 发布

1、HC-RS04底层驱动python版

#!/usr/bin/python

import RPi.GPIO as GPIO
import time

trig=20
echo=21

def init_hcsr():
	GPIO.setmode(GPIO.BCM)		#以BCM编码格式
	GPIO.setup(echo, GPIO.IN)
	#GPIO.setup(trig, GPIO.OUT)
	GPIO.setup(trig, GPIO.OUT, initial=GPIO.LOW)   #初始化低电平

def read_distance():
    GPIO.output(trig, GPIO.LOW)
    time.sleep(0.00001)#10微妙
    GPIO.output(trig, GPIO.HIGH)

    # start
    while not (GPIO.input(echo) == 1):
        pass                       #pass主要作用就是占据位置，让代码整体完整，相当于C的;或者{}，当你还没想清楚函数内部内容，就可以用pass来进行填坑
    start = time.time()

    # end
    while not (GPIO.input(echo) == 0):
        pass
    end = time.time()

    # 计算distance 时间差单位为S
    distance = round((end - start) * 343 / 2 * 100, 2)
    print("distance:{0}cm".format(distance))
    return distance


init_hcsr()
while True:
    a=read_distance()
    time.sleep(0.1)#10微妙

GPIO.cleanup()

运行结果：
在这里插入图片描述

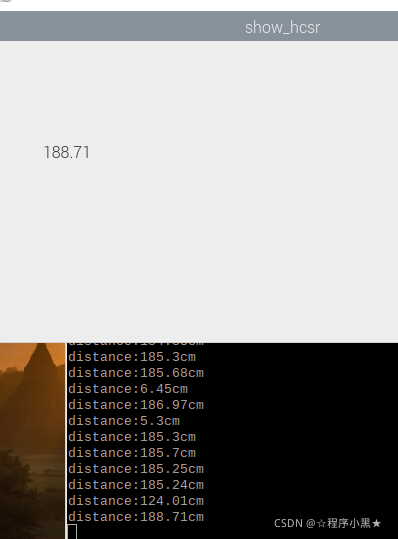

2、pyqt5显示测距

#显示变量

#!/usr/bin/python3
# -*- coding: utf-8 -*-
import RPi.GPIO as GPIO
import time
import sys
from PyQt5.QtCore import *#QCoreApplication
from PyQt5.QtGui import *#QIcon,QPalette,QBrush,QPixmap,QColor
from PyQt5.QtWidgets import *#QWidget,QLabel,QPushButton,QGridLayout,QApplication


class UI(QWidget):
    #初始化
    def __init__(self):
        super().__init__()
        self.distances=0
        self.setMinimumSize(40, 30)
        self.initUI()

    def initUI(self):
        #新建一个QTimer对象
        self.timer = QTimer()
        self.timer.setInterval(1000)
        self.timer.start()

        # 信号连接到槽    超时刷新
        self.timer.timeout.connect(self.onTimerOut)

        self.init_hcsr()
        self.distances=self.read_distance()

        self.distances_show = QLabel(self)
        self.distances_show.setText(str(self.distances))
        self.distances_show.move(60, 100)

        self.setGeometry(0, 30, 600, 300)
        self.setWindowTitle('show_hcsr')
        self.show()
        self.setWindowIcon(QIcon('logo.png'))

	#定义槽  超时刷新UI
    def onTimerOut(self):
        self.distances=self.read_distance()
        self.distances_show.setText(str(self.distances))

    def init_hcsr(self):
        GPIO.setmode(GPIO.BCM)		#以BCM编码格式
        GPIO.setup(21, GPIO.IN)
        GPIO.setup(20, GPIO.OUT, initial=GPIO.LOW)   #初始化低电平

    def read_distance(self):
        GPIO.output(20, GPIO.LOW)
        time.sleep(0.00001)#10微妙
        GPIO.output(20, GPIO.HIGH)

        # start
        while not (GPIO.input(21) == 1):
            pass                       #pass主要作用就是占据位置，让代码整体完整，相当于C的;或者{}，当你还没想清楚函数内部内容，就可以用pass来进行填坑
        start = time.time()

        # end
        while not (GPIO.input(21) == 0):
            pass
        end = time.time()

        # 计算distance 时间差单位为S
        self.distance = round((end - start) * 343 / 2 * 100, 2)
        print("distance:{0}cm".format(self.distance))
        return self.distance


    #确认是否退出UI
    def closeEvent(self, event):
        box = QMessageBox(QMessageBox.Question, self.tr("提示"), self.tr("您确定要退出吗？"), QMessageBox.NoButton, self)
        yr_btn = box.addButton(self.tr("是"), QMessageBox.YesRole)
        box.addButton(self.tr("否"), QMessageBox.NoRole)
        box.exec_()
        if box.clickedButton() == yr_btn:
            event.accept()
        else:
            event.ignore()


if __name__ == '__main__':
	app = QApplication(sys.argv)
	ex = UI()
	sys.exit(app.exec_())   #消息循环结束之后返回0，接着调用sys.exit(0)退出程序
