树莓派4B+ 手机h5网页控制GPIO
借鉴自：树莓派3B+ 手机h5网页控制GPIO - 简书 (jianshu.com)源码亲测有效，有细微的问题需要注意。1.安装web.py我用的是python3，所以需改为pip3pip3 install web.py成功安装界面如下2.新建code.py文件#!/usr/bin/env python# -*- coding: utf-8 -*-import webimport sysdefau
·
借鉴自：树莓派3B+ 手机h5网页控制GPIO - 简书 (jianshu.com)
源码亲测有效，有细微的问题需要注意。
1.安装web.py
我用的是python3，所以需改为pip3

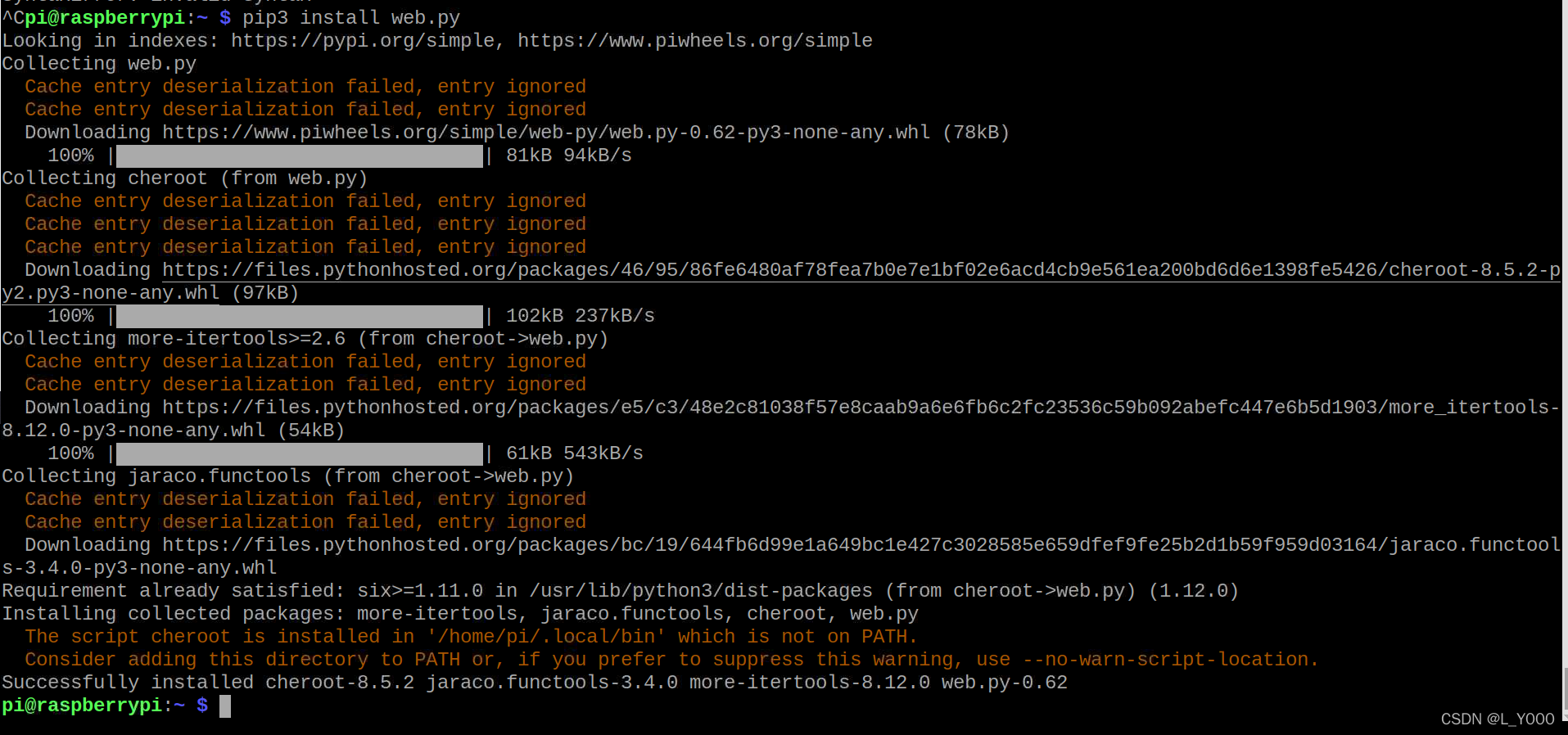

pip3 install web.py成功安装界面如下
2.新建code.py文件
#!/usr/bin/env python
# -*- coding: utf-8 -*-
import web
import sys
defaultencoding = 'utf-8'
if sys.getdefaultencoding() != defaultencoding:
reload(sys)
sys.setdefaultencoding(defaultencoding)
try:
import RPi.GPIO as GPIO
except RuntimeError:
print("导入 RPi.GPIO 时出现错误！这可能由于没有超级用户权限造成的。您可以使用 'sudo' 来运行您的脚本。")
urls = (
'/', 'index',
)
app = web.application(urls, globals())
render = web.template.render('templates/')
class index:
def GET(self):
name = '树莓派40pin引脚对照表'
footnote = '欢迎收藏'
wiringPi = 'wiringPi编码'
BCM = 'BCM编码'
fun = '功能名'
pin = '物理引脚'
web.header('Content-Type', 'text/html; charset=UTF-8')
return (render.index(name,footnote,wiringPi,BCM,fun,pin))
def POST(self):
i = web.input()
channel = i.channel
mode = i.mode
state = i.st
print(i)
stateStr = ''
if state == '1':
stateStr = '高电平'
else:
stateStr = '低电平'
setGPIO(mode,int(channel),int(state))
return ("SUCCEED:以BCM方式设置GPIO%s为%s" % (channel,stateStr))
def setGPIO(mode,channel,state):
if mode == 'BOARD':
GPIO.setmode(GPIO.BOARD)
if mode == 'BCM':
GPIO.setmode(GPIO.BCM)
GPIO.setwarnings(False)
GPIO.setup(channel, GPIO.OUT)
GPIO.output(channel, state)
if __name__ == "__main__":
# web.wsgi.runwsgi = lambda func, addr=None: web.wsgi.runfcgi(func, addr)
app.run()3.新建templates文件夹 并在文件下新建index.html
$def with (name,footnote,wiringPi,BCM,fun,pin)
<html lang="en">
<head>
<meta charset="UTF-8">
<title>$name</title>
<meta name="viewport" content="width=device-width, initial-scale=1">
<link rel="stylesheet" href="http://apps.bdimg.com/libs/jquerymobile/1.4.5/jquery.mobile-1.4.5.min.css">
<script src="http://apps.bdimg.com/libs/jquery/1.10.2/jquery.min.js"></script>
<script src="http://apps.bdimg.com/libs/jquerymobile/1.4.5/jquery.mobile-1.4.5.min.js"></script>
</head>
<script>
jQuery(document).ready(function(){
jQuery("li").click(function(){
state = 1;
if(jQuery(this).hasClass("bcm"))
{
if(jQuery(this).hasClass("outColor"))
{
state = 0;
jQuery(this).removeClass("outColor");
}else
{
state = 1;
jQuery(this).addClass("important outColor");
}
jQuery.post("/",{
channel:jQuery(this).text(),
mode:"BCM",
st:state
},
function(data,status){
alert(data);
});
}
if(jQuery(this).hasClass("bord"))
{
alert(jQuery(this).text()+"bcm");
}
});
});
</script>
<style>
body ul li{
text-align:center;
height:40px;
line-height:40px;
}
.outColor{
color: red;
}
.threev{
background-color:rgb(255,160,32);
}
.firvev{
background-color:rgb(255,33,21);
color: white;
border: 1px solid black;
}
.gray{
background-color:rgb(190,192,191);
border: 1px solid black;
}
.white{
background-color:rgb(255,255,255);
border: 1px solid black;
}
.bcm{
background-color:rgb(255,239,176);
border: 1px solid black;
}
.wiringpi{
background-color:rgb(199,237,160);
border: 1px solid black;
}
.darkblue{
background-color:rgb(5,51,255);
color: white;
border: 1px solid black;
}
.blue{
background-color:rgb(1,255,255);
color: black;
border: 1px solid black;
}
.black{
background-color:rgb(0,0,0);
color: white;
border: 1px solid black;
}
.grassgreen{
background-color:rgb(148,222,73);
border: 1px solid black;
}
.purple
{
background-color:rgb(157,68,185);
color: white;
border: 1px solid black;
}
</style>
</head>
<body>
<div data-role="page" id="pageone" data-theme="f" >
<div data-role="header">
<h1>$name</h1>
</div>
<div class="ui-grid-a mgin">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">$wiringPi</li>
<li class="bcm">$BCM</li>
<li class="white">$fun</li>
<li class="gray">$pin</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">$pin</li>
<li class="white">$fun</li>
<li class="bcm">$BCM</li>
<li class="wiringpi">$wiringPi</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a mgin">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi"></li>
<li class="bcm"></li>
<li class="threev">3.3V</li>
<li class="gray ">1</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">2</li>
<li class="firvev">5V</li>
<li class="bcm"></li>
<li class="wiringpi"></li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">8</li>
<li class="bcm">2</li>
<li class="blue">SDA.1</li>
<li class="gray ">3</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">4</li>
<li class="firvev">5V</li>
<li class="bcm"></li>
<li class="wiringpi"></li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">9</li>
<li class="bcm">3</li>
<li class="blue">SCL.1</li>
<li class="gray ">5</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">6</li>
<li class="black">GND</li>
<li class="bcm"></li>
<li class="wiringpi"></li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">7</li>
<li class="bcm">4</li>
<li class="grassgreen"> GPIO7</li>
<li class="gray ">7</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">8</li>
<li class="darkblue">TXD</li>
<li class="bcm">14</li>
<li class="wiringpi">15</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi"></li>
<li class="bcm"></li>
<li class="black">GND</li>
<li class="gray ">9</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">10</li>
<li class="darkblue">RXD</li>
<li class="bcm">15</li>
<li class="wiringpi">16</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">0</li>
<li class="bcm">17</li>
<li class="grassgreen">GPIO0</li>
<li class="gray ">11</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">12</li>
<li class="grassgreen">GPIO1</li>
<li class="bcm">18</li>
<li class="wiringpi">1</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">2</li>
<li class="bcm">27</li>
<li class="grassgreen">GPIO2</li>
<li class="gray">13</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">14</li>
<li class="black">GND</li>
<li class="bcm"></li>
<li class="wiringpi"></li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">3</li>
<li class="bcm">22</li>
<li class="grassgreen">GPIO3</li>
<li class="gray">15</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">16</li>
<li class="grassgreen">GPIO4</li>
<li class="bcm">23</li>
<li class="wiringpi">4</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi"></li>
<li class="bcm"></li>
<li class="threev">3.3V</li>
<li class="gray ">17</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">18</li>
<li class="grassgreen">GPIO5</li>
<li class="bcm">24</li>
<li class="wiringpi">5</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">12</li>
<li class="bcm">10</li>
<li class="purple">MOSI</li>
<li class="gray ">19</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">20</li>
<li class="black">GND</li>
<li class="bcm"></li>
<li class="wiringpi"></li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">13</li>
<li class="bcm">9</li>
<li class="purple">MISO</li>
<li class="gray ">21</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">22</li>
<li class="grassgreen">GPIO6</li>
<li class="bcm">25</li>
<li class="wiringpi">6</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">14</li>
<li class="bcm">11</li>
<li class="purple">SCLK</li>
<li class="gray ">23</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">24</li>
<li class="purple">CEO</li>
<li class="bcm">8</li>
<li class="wiringpi">10</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi"></li>
<li class="bcm"></li>
<li class="black">GND</li>
<li class="gray ">25</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">26</li>
<li class="purple">CE1</li>
<li class="bcm">7</li>
<li class="wiringpi">11</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">30</li>
<li class="bcm">0</li>
<li class="blue">SDA.0</li>
<li class="gray ">27</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">28</li>
<li class="blue">SCL.0</li>
<li class="bcm">1</li>
<li class="wiringpi">31</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">21</li>
<li class="bcm">5</li>
<li class="grassgreen">GPIO21</li>
<li class="gray ">29</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">30</li>
<li class="black">GND</li>
<li class="bcm"></li>
<li class="wiringpi"></li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">22</li>
<li class="bcm">6</li>
<li class="grassgreen">GPIO22</li>
<li class="gray ">31</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">32</li>
<li class="grassgreen">GPIO26</li>
<li class="bcm">12</li>
<li class="wiringpi">26</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">23</li>
<li class="bcm">13</li>
<li class="grassgreen">GPIO23</li>
<li class="gray ">33</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">34</li>
<li class=" black">GND</li>
<li class="bcm"></li>
<li class="wiringpi"></li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">24</li>
<li class="bcm">19</li>
<li class="grassgreen">GPIO24</li>
<li class="gray ">35</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">36</li>
<li class="grassgreen">GPIO27</li>
<li class="bcm">16</li>
<li class="wiringpi">27</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi">25</li>
<li class="bcm">26</li>
<li class="grassgreen">GPIO25</li>
<li class="gray ">37</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">38</li>
<li class="grassgreen">GPIO28</li>
<li class="bcm">20</li>
<li class="wiringpi">28</li>
</ul>
</div>
</div>
</div>
<div class="ui-grid-a">
<div class="ui-block-a">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="wiringpi"></li>
<li class="bcm"></li>
<li class="black">GND</li>
<li class="gray ">39</li>
</ul>
</div>
</div>
<div class="ui-block-b">
<div class="ui-grid-c" data-role="navbar">
<ul>
<li class="gray">40</li>
<li class="grassgreen">GPIO29</li>
<li class="bcm">21</li>
<li class="wiringpi">29</li>
</ul>
</div>
</div>
</div>
<div data-role="footer">
<h1>$footnote</h1>
</div>
</div>
</body>
</html>4.在此基础上。树莓派硬件如图搭建简单电路。
5.在终端运行可输入如下指令，或者用树莓派自带Thonny Python IDE.
python3 code.py运行结果如下
可在手机上浏览器输入树莓派ip+端口号8080（192.168.137.146：8080），即可出现如下
点击bcm部分，会变红，同时相应gpio口会变成高电平，会点亮led灯，并会弹出窗口提示。
CSDN联合极客时间，共同打造面向开发者的精品内容学习社区，助力成长！
更多推荐
0
0- 0
已为社区贡献1条内容
所有评论(0)
